60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ
The fan blower has a diameter of 60mm and operates with a power input of 40W and a current of 0.65A. It is suitable for cooling small to medium-sized equipment or systems. High air volume and wide air delivery, low-pressure laminar design which allows for efficient cooling and airflow distribution and low noise.
Quick Review:
| Model Type: MH6029-29008 Motor Type:AC Shade Pole Motor |
| Rated Voltage/Frequency | 115Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) | 0.65 | Bearing Type | NMB Ball Bearing |
| Input Power(W) | 40 | Insulation Class | H (Thermally Protected) |
| Speed(RPM) | 1550 | Agency Certification | ETL |
| Wind Speed(m/s) | 8 | Air Volume(CFM) | 102 |
| Protected | TP | Start Voltage | 70V 60HZ |
Production Feature :
1. 60mm diameter *180mm impeller provides high airflow and low noise.
2. It is suitable for various applications, including food heating and cooling.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of 4 positions.
5. Equipped with ball bearings, suitable for high-temperature environments and long service life.
6. Multiple performance options are available.
The typical appilication:
Pellet Stove, OVEN, Lab Equipment
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
|
|

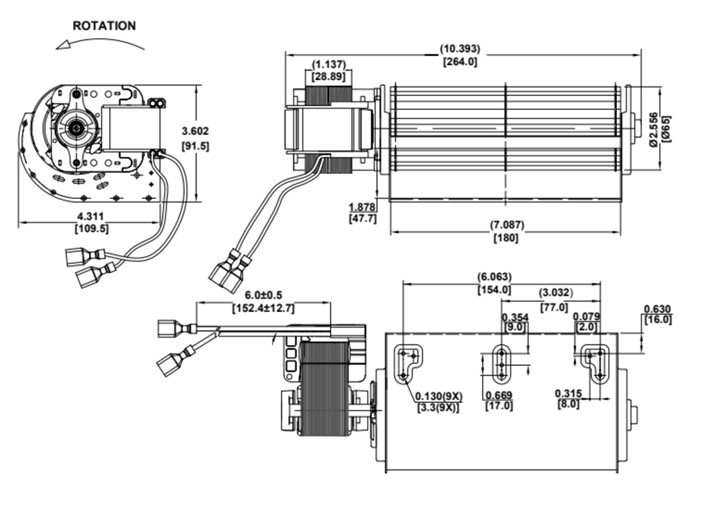

60mm*180 Impeller AC Cross Blower Fan 40W 0.65A 115VAC 60HZ Images
|
